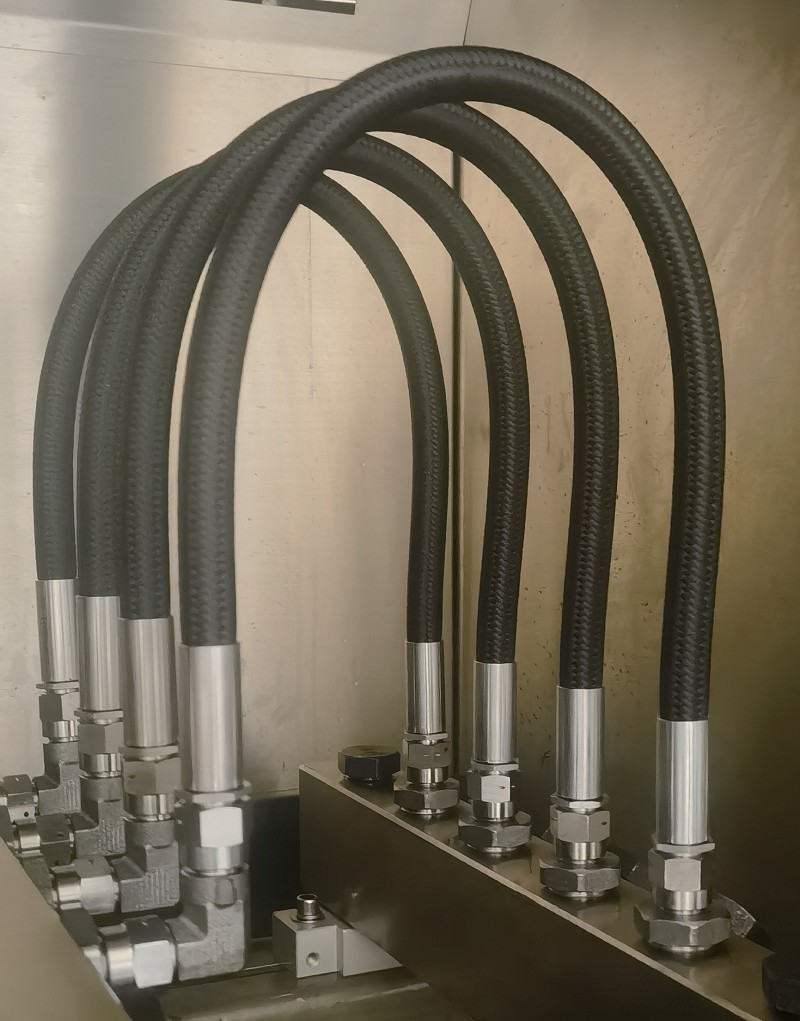

Dual System Impulse Test Bench
Application：Condenser, Evaporator, Radiator, Oil cooler, Fuel hose, Water hose etc.
- Test pressure range： 2~50bar/30~725psi (adjustable)
- Test medium： Hydraulic oil
- Test frequency： 0~3 Hz (adjustable)
- Test room temperature： -50℃~180℃/-58~356℉
- Test medium temperature： -40~150℃/-40~302℉
- Number of specimens： 1~4pcs
- a period of time： 0~10millions (adjustable)
- Parameters
- Test pressure range： 2~50bar/30~725psi (adjustable)
- Test medium： Hydraulic oil
- Test frequency： 0~3 Hz (adjustable)
- Test room temperature： -50℃~180℃/-58~356℉
- Test medium temperature： -40~150℃/-40~302℉
- Number of specimens： 1~4pcs
- a period of time： 0~10millions (adjustable)

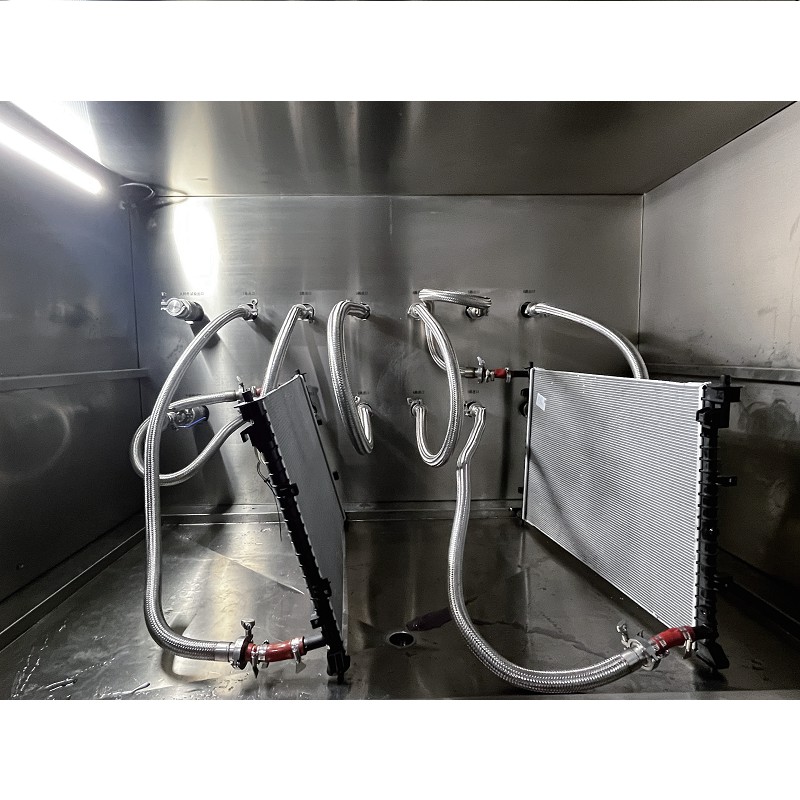

Application：
Condenser, Evaporator, Radiator, Oil cooler, Fuel hose, Water hose etc.
Equipment Parameters：（Customizable）
Oil medium system:
Pressure Range: 2~50bar/30~725psi (adjustable)
Test Medium: Hydraulic oil
Test Frequency: 0~3 Hz (adjustable)
Ambient Temperature:-50~180℃/-58~356℉
Medium Temperature:-40~150℃/-40~302℉
Number of Specimens: 1~4pcs
Number of Cycles: 0~10millions (adjustable)
Liquid medium system:
Pressure Range: 1~10bar/14.5~145psi (adjustable)
Test Medium: Water, Ethylene glycol, Antifreeze
Test Frequency: 0~3 Hz (adjustable)
Ambient Temperature: -50℃~180℃/-58~356℉
Medium Temperature: -40~150℃/-40~302℉
Number of specimens: 1~4pcs
Number of Cycles: 0~10millions
