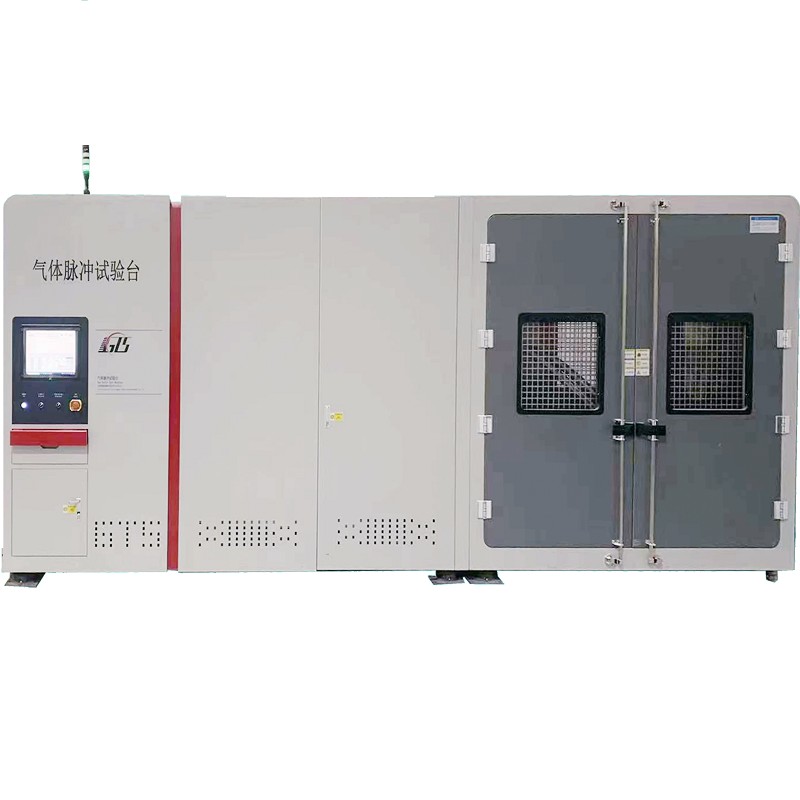

Impulse Test Bench （Gas Medium）

Application：Intercooler，Turbocharger Hose, Engine Manifold, Nylon Pipe etc.

Test pressure range： 0~20bar/0~300psi (adjustable)
Test medium： Compressed air, Nitrogen
Test frequency： 0-2Hz（adjustable）
pressure waveform： Sine wave、triangular wave、trapezoidal wave
Test room temperature： -50~200℃/-58~392℉
Test medium temperature： RT~200℃/RT~392℉
Number of specimens： 2-6pcs
Vibration mode (optional)： Electromagnetic single-axis vibration, Mechanical single-axis vibration, Servo three-axis vibration, Six-axis robot vibration

Parameters

Test pressure range： 0~20bar/0~300psi (adjustable)
Test medium： Compressed air, Nitrogen
Test frequency： 0-2Hz（adjustable）
pressure waveform： Sine wave、triangular wave、trapezoidal wave
Test room temperature： -50~200℃/-58~392℉
Test medium temperature： RT~200℃/RT~392℉
Number of specimens： 2-6pcs
Vibration mode (optional)： Electromagnetic single-axis vibration, Mechanical single-axis vibration, Servo three-axis vibration, Six-axis robot vibration

Product Detail

Application：

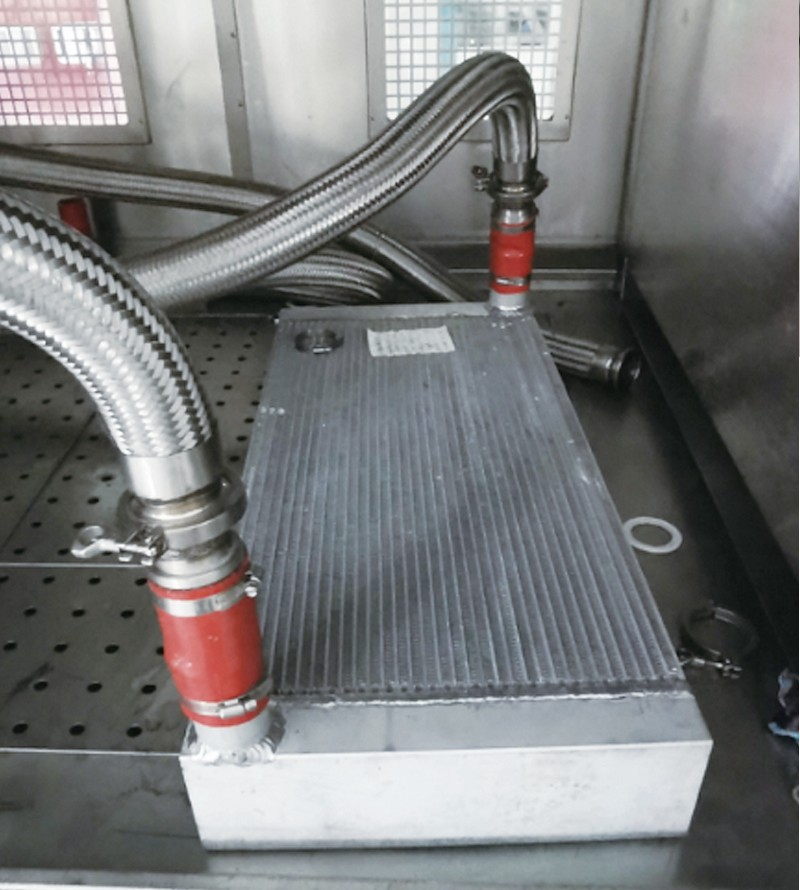

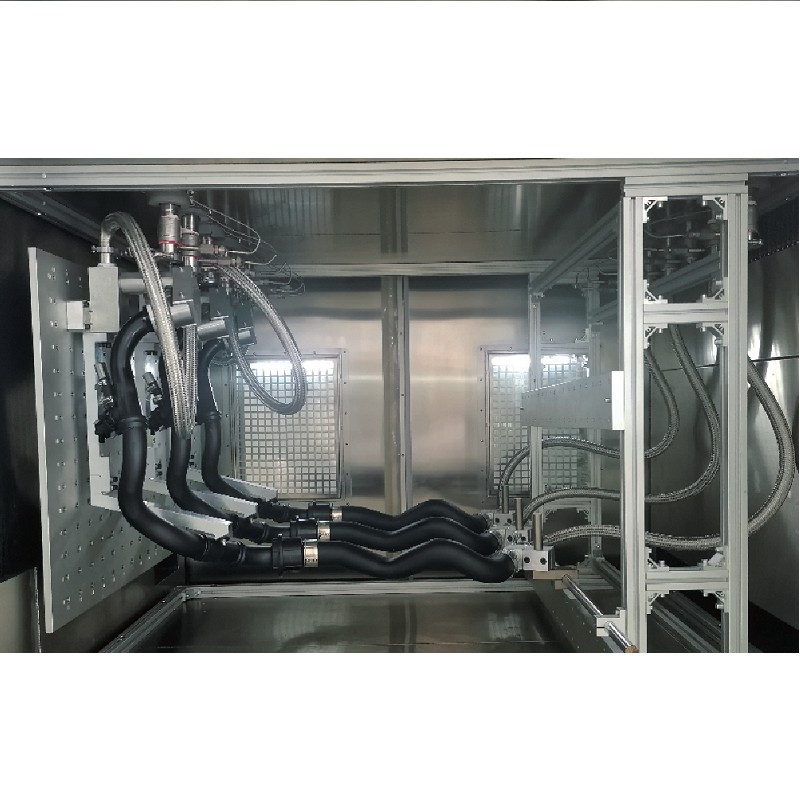

Intercooler，Turbocharger Hose, Engine Manifold, Nylon Pipe etc.

Test Standard:

QC/T 828、GMW15803、GMW16153、GMW14191、EA211、WACA-ESHV1G-6C896-AA1、VOLVO-K413-09186805（V4）、Geely-NL-3 etc.

Equipment Parameters：（Customizable）

Pressure Range: 0~20bar/0~300psi (adjustable)

Test Medium: Compressed air, Nitrogen

Test Frequency: 0-2Hz(adjustable）

Pressure Waveform: Sine wave、triangular wave、trapezoidal wave

Test Chamber Temperature: -50~200℃/-58~392℉

Test Medium Temperature: RT~200℃/RT~392℉

Number of specimens: 2-6pcs

Vibration Mode(Optional): Electromagnetic single-axis vibration, Mechanical single-axis vibration, Servo three-axis vibration, Six-axis robot vibration
