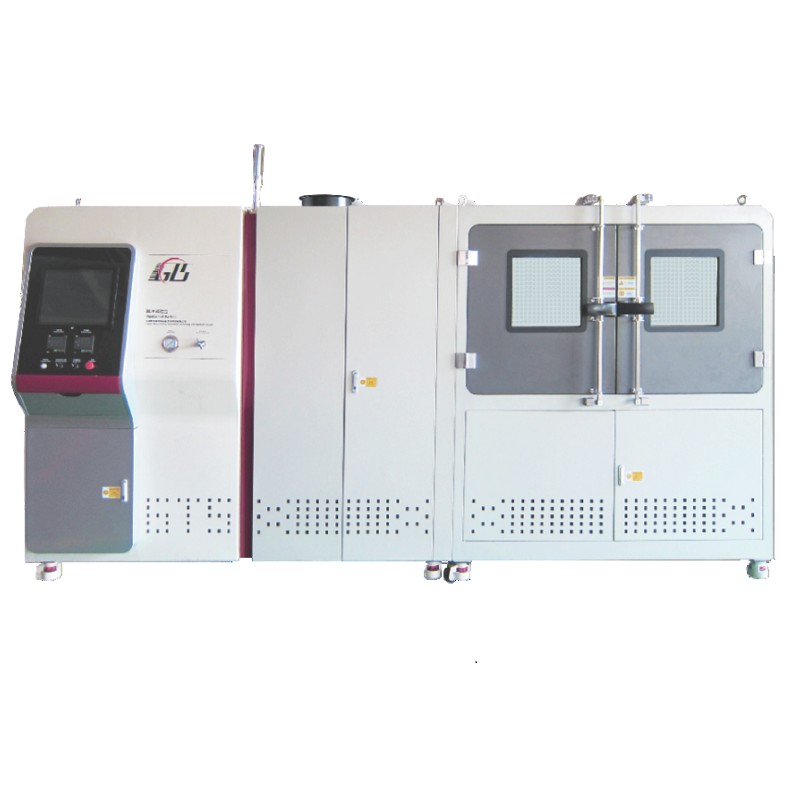

Impulse Test Bench (Oil Medium)

Test pressure range： 0~1000bar/0~14500psi (adjustable)
Test medium： Hydraulic oil,ATF oil,mineral oil,brake oil,fuel,and so on.
Test frequency： 0 ~25Hz（adjustable）
pressure waveform： Sine wave、triangular wave、trapezoidal wave、square wave
Test room temperature： -50~200℃/-58~392℉
Test medium temperature： -50~200℃/-58~392℉
installation method： Hose connection, 90° or 180° connection
Number of specimens： 2-10pcs
a period of time： 0 ~10million cycles（adjustable）
Vibration mode (optional)： Electromagnetic vibration, Mechanical vertical vibration, Servo vibration, Mechanical rotational vibration

Parameters

Test pressure range： 0~1000bar/0~14500psi (adjustable)
Test medium： Hydraulic oil,ATF oil,mineral oil,brake oil,fuel,and so on.
Test frequency： 0 ~25Hz（adjustable）
pressure waveform： Sine wave、triangular wave、trapezoidal wave、square wave
Test room temperature： -50~200℃/-58~392℉
Test medium temperature： -50~200℃/-58~392℉
installation method： Hose connection, 90° or 180° connection
Number of specimens： 2-10pcs
a period of time： 0 ~10million cycles（adjustable）
Vibration mode (optional)： Electromagnetic vibration, Mechanical vertical vibration, Servo vibration, Mechanical rotational vibration

Product Detail

Application：

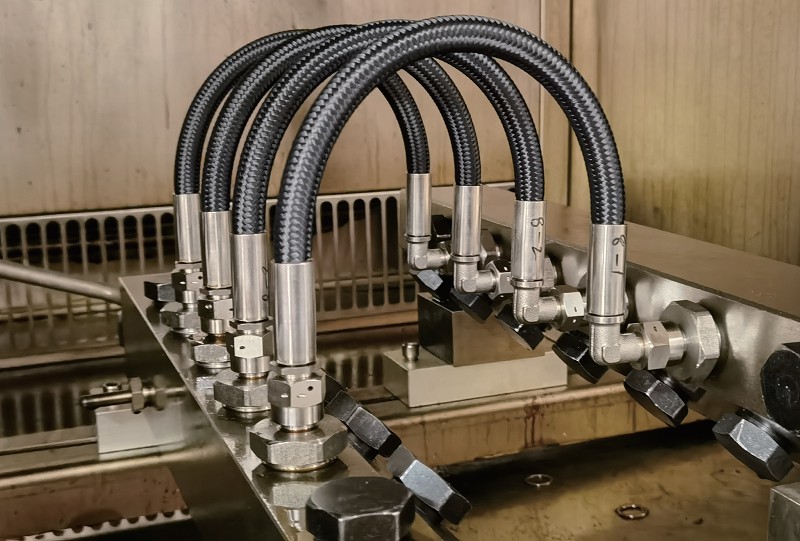

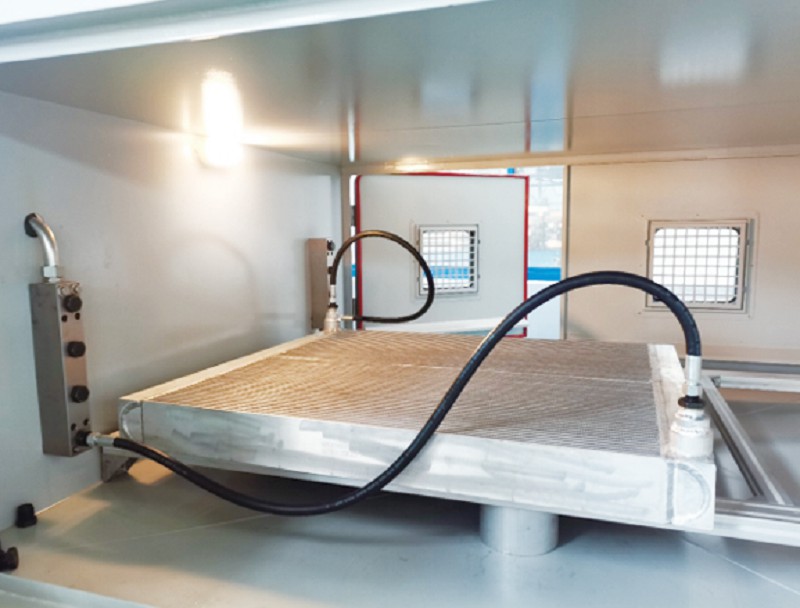

power steering hose, brake hose, air conditioning tube, fuel tube, condenser, evaporator, oil cooler, steel tube, bundy tube, pressure gauge, pressure sensor, tube fitting

Test Standard:

QC/T664、TL82415、TL82253、SAEJ188、SAEJ1681、SAEJ191、SAEJ1532、SAEJ517、GMW14319、GMW8150、GMW15964、GMW16171、GM6210、GM6260、PF90335、ES 6G91-3A719-AAPAS、ES3R23-3A212-A

Equipment Parameters：（Customizable）

Pressure Range: 0~1000bar/0~14500psi (adjustable)

Test Medium: Hydraulic oil,ATF oil,mineral oil,brake oil,fuel,and so on.

Test Frequency: 0 ~25Hz（adjustable）

Pressure Waveform: Sine wave、triangular wave、trapezoidal wave、square wave

Test Chamber Temperature: -50~200℃/-58~392℉

Test Medium Temperature: -50~200℃/-58~392℉

Installation Method: Hose connection, 90° or 180° connection

Number of Specimens: 2-10pcs

Cycle Times: 0 ~10million cycles（adjustable）

Vibration Mode (Optional): Electromagnetic vibration, Mechanical vertical vibration, Servo vibration, Mechanical rotational vibration
