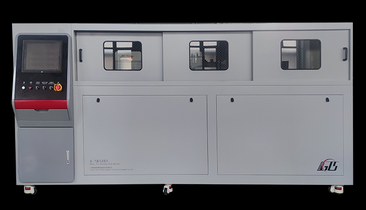

Water and Gas pressure Dual System test bench

Water and gas pressure test bench丨Tianjin Geters Testing Equipment Technology Development Co., Ltd

The test bench is mainly used for rubber hoses, automobile brake pipes, power steering tubes, clutch tubes, automotive air conditioning and radiator hoses, condensers, evaporators, oil coolers, heaters, pressure instruments, fire fighting equipment, metal joints, valves, hose assemblies, pipelines, pipelines, pressure vessels, pressure transmitters and other products pressure strength testing equipment.

The test pressure, rate and other parameters can be set in the test program. After setting, the machine can be fully automated.

A variety of test programs are available in the software, and different test programs can be selected according to the actual test purpose.

Product tested: Rubber hose

Waterway parameters: during the withstand pressure test, 5 channels are maintained at the same time, and during the blasting test, 1 channel is tested separately

Test pressure: 0.1~50MPa

Boost rate: 0.1~50MPa/min can be set arbitrarily

Medium: water, antifreeze, emulsion

Medium temperature: room temperature

Pneumatic path parameters: air tightness test, 5 channels at the same time pressure maintenance

Test pressure: 0.1~5MPa

Medium: Air

Number of tests: 5 pcs
