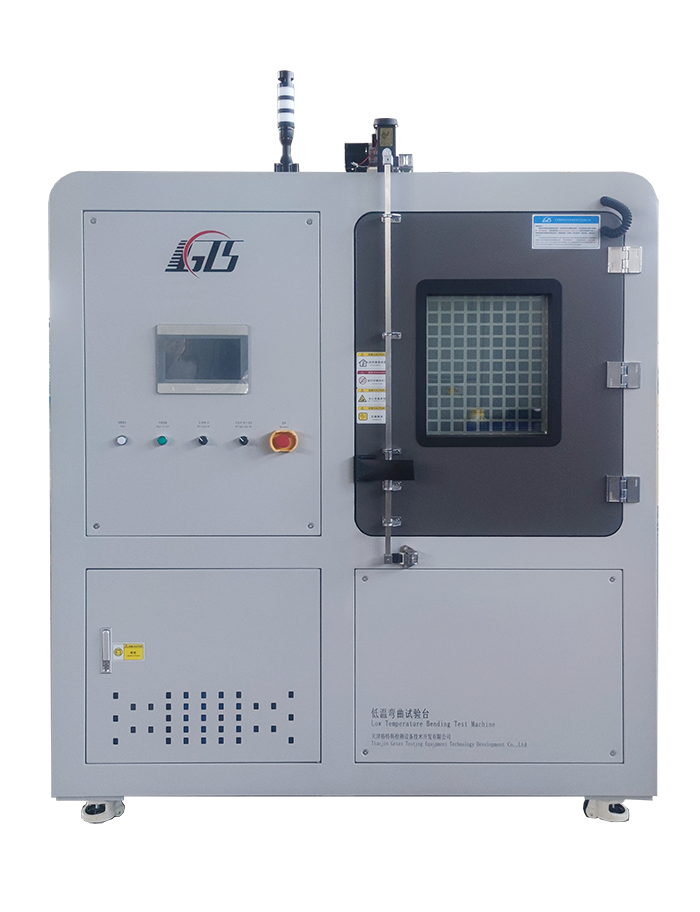

Low temperature bending test bench

Low Temperature Bending Test Bench

I. Applicable standard requirements

1. The equipment should meet the standards GB 16897-2022 "Structure, performance requirements and test methods of brake hoses" 5.3.8 cold resistance test, 6.3.9 cold resistance test, 7.2.7 cold resistance, 8.3.10 burst strength after high and low temperature resistance, 8.3.13 bending after high and low temperature resistance

2. The tested samples include hydraulic brake hoses, pneumatic brake plastic hose assemblies, vacuum brake hoses, and pneumatic brake plastic hose assemblies to facilitate the determination of whether the high and low temperature bending test of the hoses meets the standard requirements.

2. Main technical indicators

1. Bending structure: automatic bending, automatic timing

2. Control mode: touch screen

3. Number of test samples: 1 piece

4. Environmental chamber temperature range: -50℃~150℃

5. Temperature deviation: +2℃

6. Timing range: 0~99999min

7. Environmental chamber size: >800*600*700mm (height*width*depth)

Low Temperature Bending Test Bench
