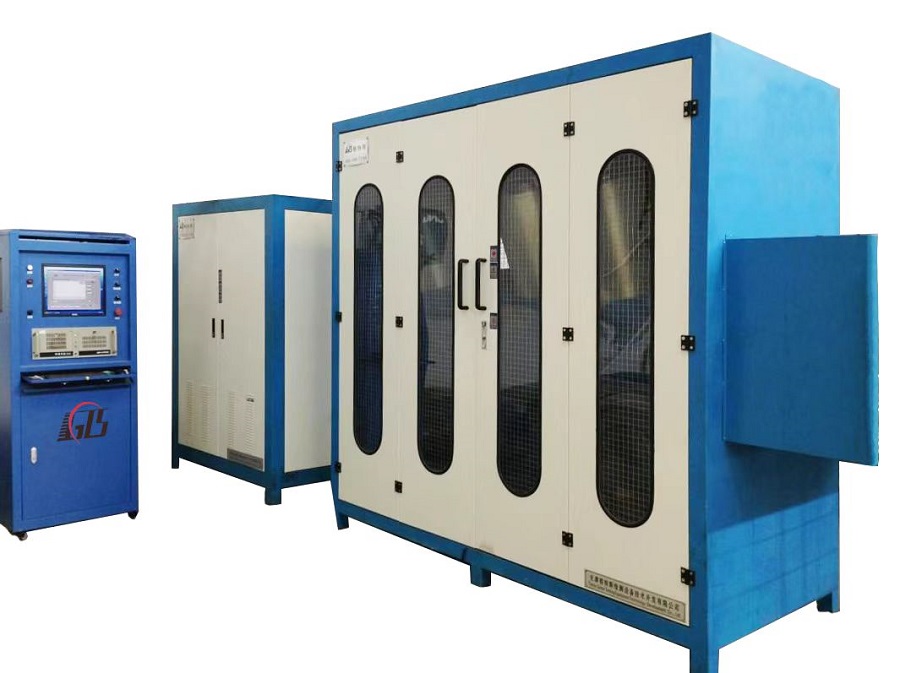

Impulse Test Bench for Pressure Vessel

IMPULSE TEST BENCH FOR PRESSURE VESSEL-TIANJIN GETES TESTING EQUIPMENT TECHNOLOGY DEVELOPMENT CO., LTD.

Product Introduction

The pressure vessel pulse test bench covers LNG cylinders, CNG cylinders, LPG cylinders, breathing cylinders, wrapped cylinders, nitrogen cylinders, oxygen cylinders, accumulators, fire cylinders, wrapped tanks+plastic containers and other related products.

Functional Features

At the beginning of the experiment, the gas inside the cylinder can be automatically expelled;

2. The observation window is equipped with a protective device. During the test, the gas cylinder test can be observed from the outside, and the operation status of the test piece can also be monitored through video on the control cabinet;

3. During the experiment, the required number of operating cycles can be freely set, and the experiment can be automatically stopped when the requirements are met;

The main component material of the test medium is stainless steel, and the working medium can be water, oil, or other liquids, with a wide range of adaptability;

5. Adopting high-quality valves and control components imported from abroad, with stable quality and performance, long service life, and suitable for long-term operation;

6. With the help of advanced measurement and control software, parameters can be freely set within the allowable range; Real time display of test time, test pressure, and test frequency values, and generation of pulse pressure test curves. The test results can be automatically saved or printed out. The testing software is mature and stable, easy to operate, safe and reliable, and all test processes comply with relevant national standards;

7. The testing machine has a power-off protection function, and the system automatically releases pressure after a power outage. After the test piece fails, the pressure drops rapidly, and there will be no continuous high-pressure liquid spraying out;

8. Intelligent management system: suitable for unmanned supervision.

Applicable Standards:

GB/T9252, GB/T4351, GB/T17258, GB/T4351, GB/T8109, ISO11439, ISO9809, ECE R110 and other standards

Technical Parameter

Pressure range: 0-100MPa can be freely selected

Pulse frequency: 0-60 times/minute can be freely selected

Test frequency: 0-10 million times can be set

Environmental temperature: Room temperature (optional high and low temperature)

Medium temperature: room temperature

Test medium: hydraulic oil or water

Test waveform: trapezoidal wave Test piece quantity: 2-4 pieces (volume ≤ 500L)
