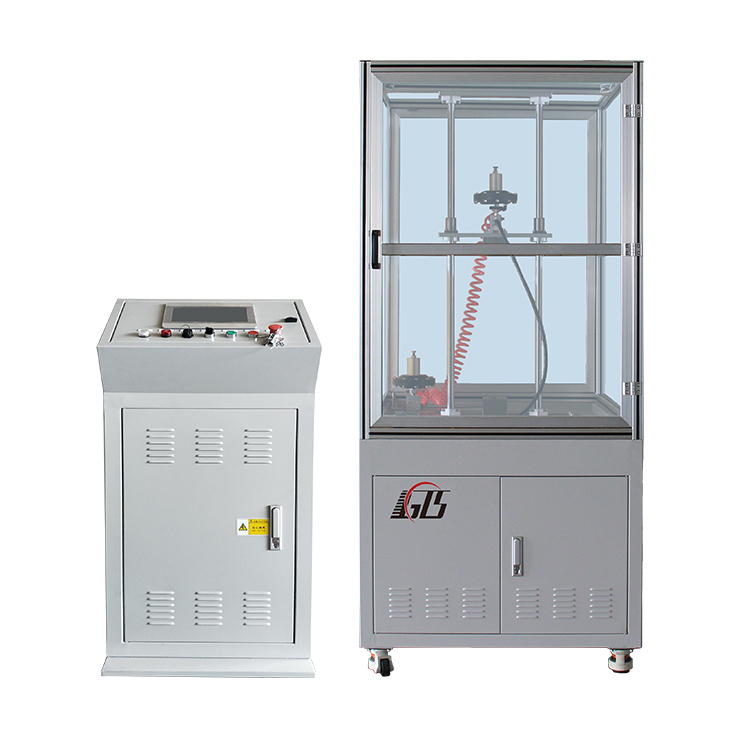

Volumetric Expansion Test Bench
Application: Rubber hose, automotive brake hose, power steering pipe etc.
- Test pressure range： 5~250bar/75~3625psi
- Test medium： Water, Water ethylene glycol, Brake fluid, Mineral oil
- Number of specimens： 1pc
- pressure rise rate： 1~50bar/s / 14.5~725psi/s (adjustable)
- Sample diameter： φ3~φ150mm
- Sample length： Lmax=1000mm
- Total capacity in the cage： 5ml, 10ml, 50ml, 100ml
- Pressure control accuracy： ≤±0.5% F.S；
- Parameters
- Test pressure range： 5~250bar/75~3625psi
- Test medium： Water, Water ethylene glycol, Brake fluid, Mineral oil
- Number of specimens： 1pc
- pressure rise rate： 1~50bar/s / 14.5~725psi/s (adjustable)
- Sample diameter： φ3~φ150mm
- Sample length： Lmax=1000mm
- Total capacity in the cage： 5ml, 10ml, 50ml, 100ml
- Pressure control accuracy： ≤±0.5% F.S；
Application:
Rubber hose, automotive brake hose, power steering pipe etc.
Test Standard:
GB/T7129, GB/T16897
Equipment Parameters：
Pressure Range: 5~250bar/75~3625psi
Test Medium: Water, Water ethylene glycol, Brake fluid, Mineral oil
Pressure Rise Rate: 1~50bar/s / 14.5~725psi/s (adjustable)
Number of Specimens: 1pc
Specimen Diameter: φ3~φ150mm
Specimen Length: Lmax=1000mm
Total Volume of Burette: 5ml, 10ml, 50ml, 100ml
Measurement accuracy：≤±0.5% F.S；
Minimum pressure display unit：0.1bar
