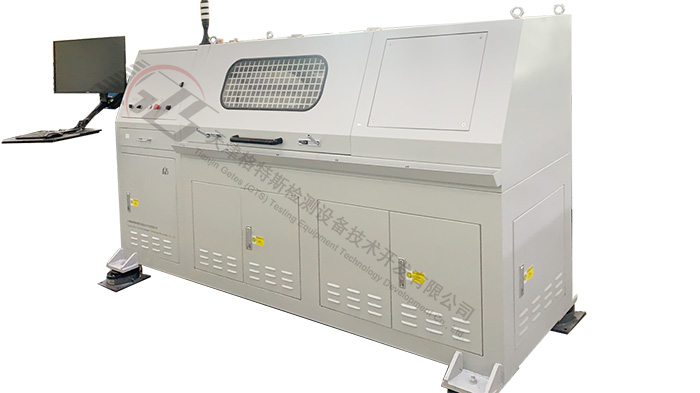

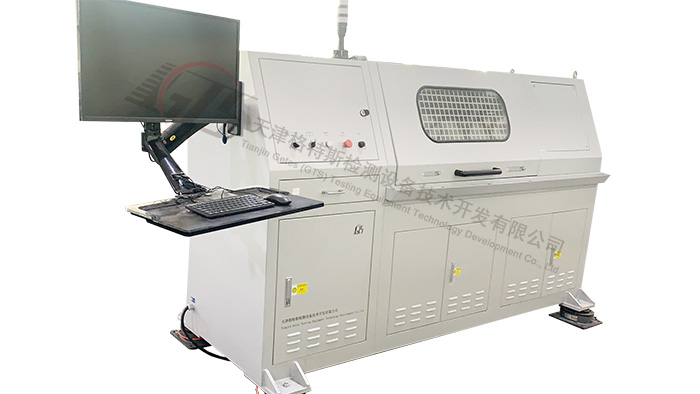

ROTATING BENDING FATIGUE TEST BENCH

This test bench is suitable for rotating bending fatigue test of pipelines, connectors and test pieces with pressure. It meets HB6442-1990 aircraft hydraulic conduit and connector bending fatigue test. The system mainly consists of boost system, bending system and strain system; the test parameters can be set arbitrarily according to the actual product needs.

Technical parameters

Product specifications

(1) Aviation hydraulic conduits and connectors

(2) Test pipe outer diameter range: 4mm~100mm.

(3) Test pipe length 100~700mm

(4) Able to achieve 1-6 stations working simultaneously;

Pressure parameters

(1) Test medium: No. 15 aviation hydraulic oil;

(2) Environment/medium temperature: normal temperature, no control and no collection;

(3) Test space size: length 1500×width 1000×height 800mm (negotiable according to customer needs);

(4) Constant pressure range: 0-60MPa; can be set or adjusted arbitrarily;

(5) Pressure control method: gas-liquid boost control

(6) Pressure sensor/pressure gauge accuracy: ±0.25%F.S;

(7) Pressure control accuracy: ±0.5%FS.

Rotational bending parameters

(1) Rotational bending fatigue system: capable of realizing speed regulation control and eccentricity adjustment, so that the specimen can withstand the cyclic bending stress caused by eccentricity.

(2) Speed range: 400r/min~3600r/min.

(3) Speed fluctuation: ≤0.5%.

(4) Coaxiality between tailstock center and spindle rotation center ≤0.05mm.

(5) Offset range: 0~25mm, adjustable.

(6) Offset setting accuracy: ≤5%F.S.
